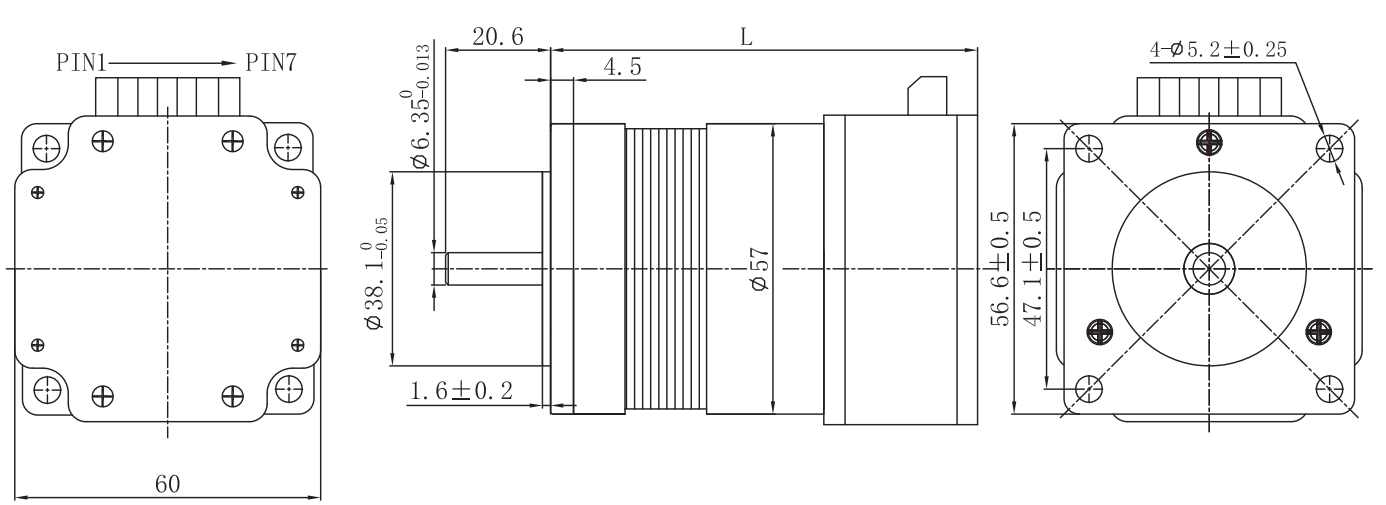

外形尺寸
資料下載
聯系合作特性概要 ( General Specifications ) | |
繞組連接方式 ( Winding Type ) | 三角形 ( Delta connection) |
霍爾分布角度 ( Hall Effect Angle ) | 120度電角度 ( Electrical Angle of 120 degree) |
徑向間隙 ( Radial Play ) | 0.02mm@450g |
軸向間隙 ( Axial Play ) | 0.08mm@450g |
最大徑向負載 ( Max radial force ) | 115N 距法蘭20mm ( 20mm From the flange) |
最大軸向負載 ( Max axial force ) | 45N |
介電強度 ( Dielectric Strength ) | 650VAC/1S |
絕緣電阻 ( Insulation Resistance ) | 100MΩ, 500VDC |
環境溫度 ( Ambient Temperature ) | -20°C ~ +50°C |
絕緣等級 (Insulation Class) | Class B |
| 接線說明(Electric Connection) | ||||||
| +Vp | GND | GND | PG | SV | F/R | +5V |
| O | O | O | O | O | O | O |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| 1 +Vp---輸入電壓 +36VDC(DC POWER INPUT +36VDC) | ||||||
| 2 GND---系統的公共接地(COMMON GROUND OF SYSTEM) | ||||||
| 3 GND---系統的公共接地(COMMON GROUND OF SYSTEM) | ||||||
| 4 PG---速度脈沖輸出(TTL), 6個/轉(SPEED PULSE OUTPUT(TTL), 6 PULSE/REV) | ||||||
| 5 SV---調速電壓0—5VDC (SPEED VOLTAGE 0—5VDC) | ||||||
| 6 F/R---轉向控制(ROTATING DIRECTION) | ||||||
| 7 +5V---+5V 電壓輸出(VOLTAGE OUTPUT) | ||||||
| 單 位 (Unit) | FL57BL(S)005-IE | FL57BL(S)01-IE | FL57BL(S)02-IE | FL57BL(S)03-IE | |
| 極數 ( Number of poles ) | 4 | ||||
| 相數 ( Number of phases ) | 3 | ||||
| 額定電壓 (Rated voltage ) | VDC | 36 | |||
| 額定轉矩 ( Rated torque) | N.m | 0.055 | 0.11 | 0.22 | 0.33 |
| 連續運行轉矩 ( Continuous stall torque) | N.m | 0.066 | 0.132 | 0.264 | 0.396 |
| 額定速度 ( Rated speed ) | RPM | 4000 | 4000 | 4000 | 4000 |
| 額定功率 ( Rated power ) | W | 25 | 46 | 99 | 138 |
| 峰值轉矩 ( Peak torque ) | N.m | 0.15 | 0.3 | 0.45 | 0.48 |
| 峰值電流 ( Peak current ) | A | 3 | 5 | 7.5 | 7.5 |
| 線電阻 ( Line to line resistance ) | ohms@20℃ | 4.3 | 1.63 | 0.64 | 0.45 |
| 線電感 ( Line to line inductance ) | mH | 10 | 4.4 | 2 | 1.5 |
| 轉矩常數 ( Torque constant ) | N.m/A | 0.052 | 0.061 | 0.06 | 0.065 |
| 反電勢 ( Back EMF ) | Vrms/KRPM | 3.8 | 4.5 | 4.45 | 4.8 |
| 轉動慣量 ( Rotor inertia ) | g.cm2 | 30 | 75 | 119 | 173 |
| 機身長度 ( Motor length ) L | mm | 90 | 100 | 139 | 159 |
| 重量 ( Weight ) | Kg | 0.56 | 0.67 | 0.9 | 1.2 |
該款電機可以根據客戶需求定制。
The motor can be designed &manufactured with customized request.
| FL57BL02-IE | 155.03 KB |
|
| FL57BL03-IE Model (1) | 153.72 KB |
|
| FL57BL01-IE -1 | 154.68 KB |
|
| FL57BL005-IE | 155.33 KB |
|
