首頁 > 產品中心 > 無刷電機 > 無刷減速電機 > 正齒輪箱

產品中心正齒輪箱

FL86BLS-90JB

86mm無刷電機配90mm正齒輪箱

選件:

編碼器
齒輪箱
接插件
剎車

FL86BLS-90JB

立即訂購聯系我們

技術參數
外形尺寸
資料下載
聯系合作

齒輪箱參數(Spur Gearbox Specifications)

減速比(Ratio)	3	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120
重量\|(Weight)	1.3kg								1.5kg
減速級數(Number Of gear trains)	2								3					4
額定轉矩(Nominal torque)	30N.m
極限轉矩(Ultimate torque)	45N.m
效率(Efficiency)	0.81								0.73				0.66
回差(Backlash)	4 deg								3.5deg				2.5deg

正齒輪箱無刷直流電機參數(Spur Geared BLDC Motor Specifications)：

減速比(Ratio)		3	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120
FL86BLS58-90JB	額定轉矩(Rated torque) (N.m)	0.85	1.42	1.7	2.13	2.55	2.84	3.54	4.25	4.6	5.11	6.38	7.67	9.2	9.24	11.6	13.8	17.3	20.8	23.1	27.7
	額定轉速(Rated speed) (RPM)	1000	600	500	400	333	300	240	200	167	150	120	100	83.3	75	60	50	40	33.3	30	25
	極限轉矩(Ultimate torque) (N.m)	2.55	4.25	5.1	6.38	7.65	8.52	10.6	12.7	13.8	15.3	19.1	23	27.6	27.7	34.8	41.4	45
FL86BLS71-90JB	額定轉矩(Rated torque) (N.m)	1.7	2.84	3.4	4.25	5.1	5.67	7.08	8.5	9.2	10.2	12.8	15.3	18.4	18.5	23.1	27.7	---	---	---	---
	額定轉速(Rated speed) (RPM)	1000	600	500	400	333	300	240	200	167	150	120	100	83.3	75	60	50	---	---	---	---
	極限轉矩(Ultimate torque) (N.m)	5.1	8.52	10.2	12.7	15.3	17	21.2	25.5	27.6	30.6	38.4	45					---	---	---	---
FL86BLS98-90JB	額定轉矩(Rated torque) (N.m)	3.4	5.67	6.8	8.5	10.2	11.3	14.2	17	18.4	20.4	25.5	30.6	---	---	---	---	---	---	---	---
	額定轉速(Rated speed) (RPM)	1000	600	500	400	333	300	240	200	167	150	120	100	---	---	---	---	---	---	---	---
	極限轉矩(Ultimate torque) (N.m)	10.2	17	20.4	25.5	30.6	33.9	42.6	45					---	---	---	---	---	---	---	---
FL86BLS125-90JB	額定轉矩(Rated torque) (N.m)	5.1	8.5	10.2	12.7	15.3	17	21.2	25.5	27.5	30.6	---	---	---	---	---	---	---	---	---	---
	額定轉速(Rated speed) (RPM)	1000	600	500	400	333	300	240	200	167	150	---	---	---	---	---	---	---	---	---	---
	極限轉矩(Ultimate torque) (N.m)	15.3	25.5	30.6	38.1	45						---	---	---	---	---	---	---	---	---	---

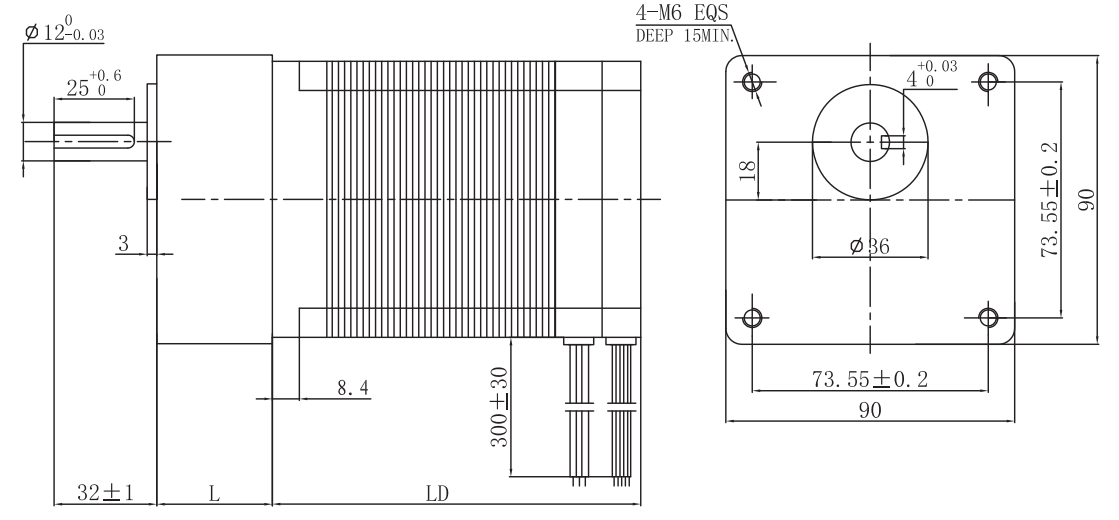

減速比(Ratio)	L2(mm)				L1(mm)
減速比(Ratio)	FL86BLS58-90JB	FL86BLS71-90JB	FL86BLS98-90JB	FL86BLS125-90JB	L1(mm)
3---15	72	86	112	139	42
18---120	72	86	112	139	60

電機尺寸
