額定電壓 Rated Voltage

48V

使用電壓范圍 Voltage Range

15-60V

額定輸出功率 Rated Output Power

700w ±10%

額定扭矩 Rated Torque

40N.m

峰值扭矩 Peak Torque

120N.m

運轉方向 Running Direction

CW/CCW

使用溫度范圍 Temperature Range

-20~50℃

使用濕度范圍 Humidity Range

5~85%

保存溫度范圍 Storage Temperature Range

-30~70℃

絕緣等級 Insulation Level

Class B

空載轉速 No-load Speed

200 rpm ± 10%

空載電流 No-load Current

0.7 Arms ±10%

額定負載轉速 Rated Load Speed

167 rpm ± 10%

額定負載相電流 Rated Load Phase   Current

27Apk ± 10%

峰值相電流 Peak Phase Current

90Apk ± 10%

絕緣電阻/定子繞組 Insulation Resistance/ Stator Winding

DC 500VAC，100M 0hms

耐高壓/定子與機殼   High Voltage Resistance/ Stator and Casing

600VAC, 1s, 2mA

電機反電勢 Back-EMF

16.9 Vrms/krpm ±10%

線電阻 Line Resistance

0.16Ω ± 10%

轉矩常數 Torque Constant

2.1N.m/Arms

電機電感 Inductance

0.211mH ±10%

重量Weight

1420g ±20g

極數Pole

42

相數Phase

3

驅動方式Drive Method

FOC

減速比reduction ratio

9 : 1

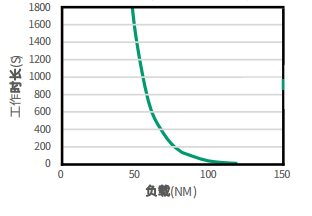

40

rated

46

2500

70

350

80

160

120

10
